In industries in which thermal law is essential, warmth exchangers function essential components to hold operational efficiency and power savings. Whether it’s in oil refineries, power vegetation, HVAC systems, or food processing devices, the use of warmness exchangers facilitates in transferring warmness among two or extra fluids. Among the numerous sorts, the shell and tube warmth exchanger stands out due to its robust layout and high thermal overall performance. On the alternative hand, the double pipe warmth exchanger is also broadly used, specifically in smaller-scale packages. Understanding the difference between these two common kinds is vital for deciding on the maximum suitable equipment for a given thermal technique.

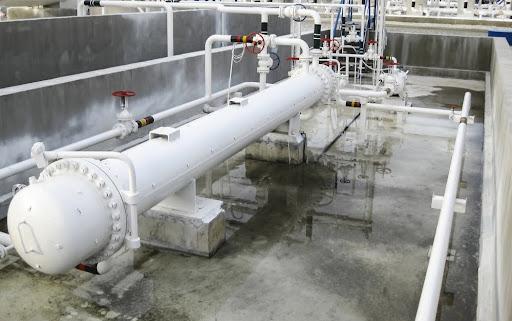

Basic Structure and Working Principle of Shell and Tube Heat Exchanger

The shell and tube heat exchanger incorporates a sequence of tubes, one set wearing the recent fluid and the alternative the cold. These tubes are encased inside a cylindrical shell, permitting the fluids to exchange warmness thru the partitions of the tubes without direct touch. The layout permits flexibility in dealing with numerous pressure and temperature conditions. The tube package configuration can be numerous—U-tube, constant tube sheet, or floating head—to deal with distinct operational wishes. The shell-aspect fluid flows over the tubes while the tube-side fluid flows inner them, creating an powerful temperature differential for heat transfer.

How Double Pipe Heat Exchanger Differs in Design and Use

A double pipe heat exchanger, as the call shows, consists of one pipe inner another. One fluid flows through the internal pipe whilst the opposite flows thru the annular area between the two. The counterflow arrangement—wherein fluids flow in contrary directions—maximizes the temperature gradient and therefore will increase performance in small-scale structures. While less complex than a shell and tube warmth exchanger, the double pipe design is simpler to easy and maintain, which makes it appropriate for packages with restricted space and moderate thermal requirements.

Efficiency Comparison Between Shell and Tube and Double Pipe Designs

When it involves warmness switch efficiency, the shell and tube warmth exchanger regularly surpasses the double pipe heat exchanger in larger structures. Its more than one tube pathways offer a significantly higher warmth transfer region, which enhances overall performance. Moreover, shell and tube structures can accommodate baffles, which direct the float of the shell-facet fluid, thereby enhancing turbulence and heat alternate. Although double pipe structures have higher efficiency according to unit duration in a few cases, they do now not scale up as well for industrial applications. This makes shell and tube heat exchanger structures greater suitable for high-potential and excessive-temperature settings.

Material Selection and Durability

Material compatibility is a critical element in warmness exchanger overall performance and longevity. The shell and tube warmth exchanger may be synthetic the use of a huge style of substances, which include stainless-steel, titanium, and copper alloys, to resist corrosion, high strain, and excessive temperature. Similarly, double pipe warmness exchanger structures are normally built the usage of materials proper for his or her intended environment, however they'll not offer the equal variety of customization. In corrosive environments or wherein sturdiness is key, the shell and tube warmth exchanger usually offers a extra long-lasting solution because of its modular construction and simplicity of issue substitute.

Maintenance and Cleaning Considerations

Ease of renovation can be a decisive component in selecting a heat exchanger. A double pipe warmness exchanger offers simplicity; its linear layout makes it less difficult to disassemble, look into, and smooth. However, this simplicity limits its software in larger systems. Conversely, a shell and tube warmth exchanger, although more complex, gives various cleaning alternatives consisting of chemical cleaning, hydro jetting, or mechanical tube cleaning. Its sectional design additionally allows for character components to be repaired or replaced without needing to remove the complete unit. For industries that value uptime and minimal interruption, the shell and tube warmth exchanger is frequently the favored choice.

Pressure Drop and Flow Management

Pressure drop refers to the loss of fluid strain as it passes thru the exchanger. The layout of the shell and tube warmness exchanger facilitates manage this successfully, even in high-stress environments. The multi-bypass association and use of baffles in the shell side assist in keeping consistent stress while enhancing warmth transfer. On the opposite hand, double pipe heat exchanger systems regularly enjoy higher stress drops in longer assemblies due to their restrained cross-sectional vicinity. This function makes shell and tube warmness exchanger systems greater favorable in operations in which retaining pressure is important.

Application Versatility in Industrial Sectors

Different commercial packages have precise thermal wishes, and the adaptability of the shell and tube warmness exchanger makes it appropriate for a wide array of settings. These include power era, oil refining, chemical processing, and marine engineering. The double pipe heat exchanger is commonly utilized in industries like prescribed drugs or meals processing in which compact layout and clean maintenance are greater precious than excessive capability. While each kinds serve vital roles, the shell and tube warmth exchanger provides a broader utility variety, specially while high performance, scalability, and durability are required.

Thermal Expansion and Stress Management

Handling thermal growth is vital to save you harm to warmth exchangers. The shell and tube warmness exchanger is designed to accommodate such pressure, particularly in models with floating heads or U-tube configurations. These permit the tubes to increase and settlement freely, reducing the risk of mechanical failure. Double pipe warmth exchanger devices, even though simpler, can be extra at risk of thermal pressure over time due to their inflexible construction. In programs involving frequent temperature fluctuations, the shell and tube heat exchanger proves to be greater dependable.

Installation Footprint and Scalability

Space concerns play a massive position in device choice. A double pipe heat exchanger offers a compact solution, appropriate for installations with space constraints. However, the scalability of those devices is restrained; growing the warmth transfer ability requires adding extra parallel pipes, that may fast devour area and complicate installation. In evaluation, the shell and tube warmness exchanger presents high ability within a especially compact footprint when designed successfully. Its modular nature additionally makes future upgrades or expansions more feasible, giving industries greater flexibility.

Energy Savings and Cost Efficiency

Energy intake is a developing problem in business operations. A properly-designed shell and tube heat exchanger can make contributions extensively to electricity financial savings with the aid of successfully improving warmth and decreasing the weight on number one heating or cooling systems. Although double pipe warmth exchanger systems are inexpensive in advance and offer lower upkeep fees, their restricted performance in big-scale operations often outcomes in better long-time period strength costs. From a lifecycle cost perspective, the shell and tube warmness exchanger grants superior cost, especially in energy-in depth techniques.

Environmental Considerations and Sustainability

Sustainable business practices are becoming increasingly more crucial. Heat exchangers that offer power recuperation and reduce waste align with green manufacturing dreams. The shell and tube warmness exchanger sticks out in this regard because of its green thermal overall performance and longevity, which reduce each strength consumption and waste technology. While a double pipe heat exchanger can be suitable for smaller, low-effect operations, it doesn’t match the environmental overall performance of its counterpart in large packages. Choosing the right exchanger contributes no longer simply to operational success however also to corporate sustainability targets.

Conclusion: Choosing the Right Heat Exchanger for the Job

Selecting among a shell and tube heat exchanger and a double pipe warmness exchanger involves comparing the particular wishes of the software—thermal load, pressure, area, and protection requirements. For larger-scale, high-temperature, and excessive-strain applications, the shell and tube warmth exchanger consistently proves its well worth thru its performance, durability, and adaptableness. While double pipe warmness exchanger structures are ideal for confined-area or decrease-ability packages, they lack the scalability and robustness of the former.

For expertly engineered warmness exchanger answers, Kinetic Engineering Corporation offers industry-leading designs tailor-made to meet even the maximum disturbing operational requirements.
