The torque characteristics of a DC brushed motor are fundamental to understanding its performance in different applications. Torque, which is the rotational force the motor generates, directly impacts how well the motor can start, accelerate, and drive loads under various conditions. A DC brushed motor is favored for its straightforward torque-speed relationship, making it easier to predict and control compared to other motor types.

One of the key torque characteristics of a DC brushed motor is the high starting torque. When power is first applied, the motor can deliver a maximum torque at zero or very low speed, which is essential for applications requiring immediate load movement or overcoming initial inertia. This characteristic makes the motor suitable for devices like electric tools, conveyors, and robotics, where quick and reliable startup torque is crucial.

The torque of a DC brushed motor generally decreases linearly as the speed increases. This means that at no load, when the motor runs at its maximum speed, the torque output is minimal. Conversely, as the load increases and the speed decreases, the motor produces more torque. This inverse relationship between speed and torque allows for straightforward speed control by adjusting the voltage applied to the motor, enabling users to fine-tune performance depending on operational requirements.

Another important aspect is the continuous torque rating, which indicates the maximum torque the motor can sustain without overheating or suffering damage over a long period. This rating depends on the motor’s design, including winding resistance, cooling methods, and materials. Operating within this continuous torque limit ensures reliability and longevity, which is especially critical in industrial settings where motors often run for extended periods.

The peak or stall torque is the maximum torque the motor can generate momentarily when the rotor is stalled or prevented from rotating. This value is significantly higher than the continuous torque but cannot be sustained without risking damage. Knowing the stall torque is important for designing safety features and understanding the motor’s limits during sudden load changes or startup conditions.

Torque ripple is another characteristic specific to DC brushed motors, caused by the interaction of the brushes and commutator segments. This ripple results in small fluctuations in torque during rotation, which can lead to vibrations or noise. While not usually a problem for many applications, it can affect precision devices or those requiring very smooth operation. Advances in brush design and commutator construction help reduce torque ripple in modern motors.

Load torque characteristics also influence the motor’s response. For example, when driving constant torque loads such as pumps or fans, the motor maintains relatively steady torque across a range of speeds. In contrast, variable torque loads like centrifugal pumps require torque that changes with speed, and the DC brushed motor’s linear torque-speed curve fits well in such scenarios.

In conclusion, the torque characteristics of a DC brushed motor, including its high starting torque, linear torque-speed relationship, continuous torque rating, stall torque, and torque ripple, define its versatility and suitability for many applications. Understanding these features allows engineers to select and operate these motors effectively, ensuring optimal performance and durability.

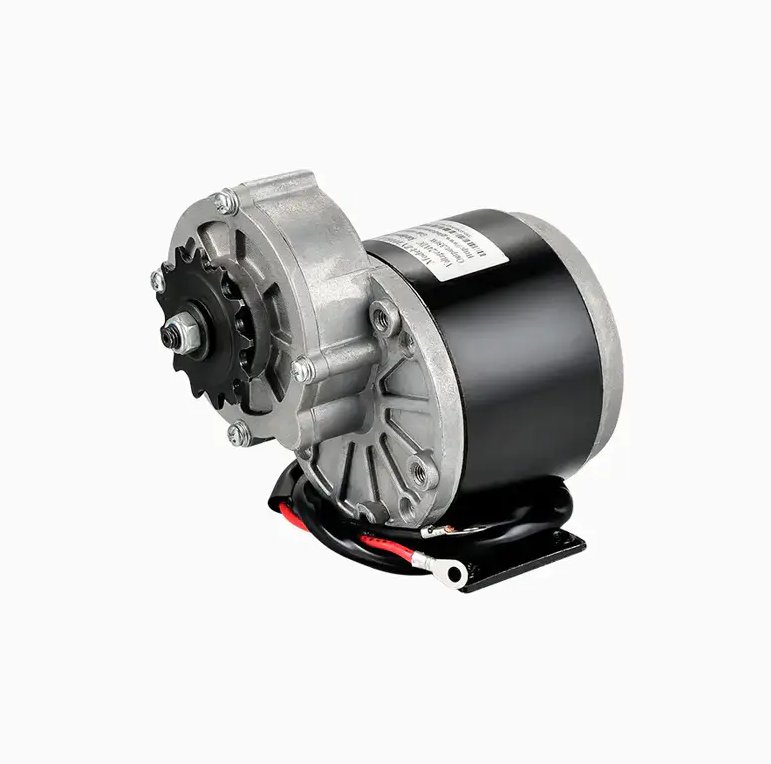

Key Features:

1. Permanent magnet design: The motor incorporates permanent magnets that generate a strong magnetic field, resulting in higher torque density and improved overall efficiency.

2. Brushed technology: This motor utilizes traditional brushed technology, making it easier to maintain and repair. It also ensures smooth communication, providing reliable and consistent performance.

3. Compact and lightweight: The compact and lightweight design of the motor allows for easy integration into electric scooters, without compromising on performance or functionality.

4. Wide speed range: The motor offers a wide speed range, allowing riders to choose their preferred speed for different road conditions and riding styles.

5. Long life span: DC Brush Motor is built to last, with a robust construction and high-quality materials. It can withstand rigorous use and offers a long service life.
