Optimizing Vacuum Pumping Systems for High-Capacity Power Transformers

0
211

High-capacity power transformers are critical components in electrical grids, ensuring efficient energy transmission and distribution. One of the most crucial stages in transformer manufacturing is the removal of moisture and gases from the insulation system through vacuum pumping. An optimized vacuum pumping system enhances transformer reliability, extends lifespan, and improves performance. This blog explores key strategies for optimizing vacuum pumping systems in high-capacity power transformer production.

Why Vacuum Pumping is Essential

During manufacturing, transformer insulation materials (such as oil-impregnated paper) must be thoroughly dried to prevent partial discharges, dielectric failures, and accelerated aging. Residual moisture and gases can lead to:

Reduced dielectric strength – Increasing the risk of internal faults.

Increased thermal stress – Leading to premature insulation degradation.

Formation of gas bubbles – Causing potential breakdown under load.

A well-optimized vacuum pumping system ensures deep and uniform drying, enhancing transformer longevity.

Key Optimization Strategies

1. Selecting the Right Vacuum Pump

The choice of vacuum pump depends on the required ultimate vacuum level and pumping speed. For high-capacity transformers:

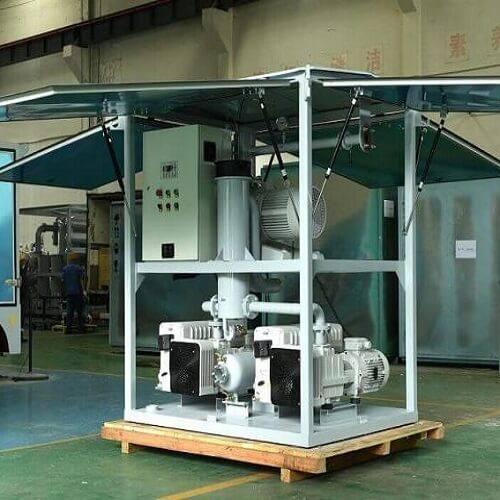

Roots blowers (booster pumps) combined with oil-sealed rotary vane pumps are commonly used to achieve deep vacuum levels (below 0.1 mbar).

Dry screw pumps are gaining popularity due to their oil-free operation, reducing contamination risks.

2. Multi-Stage Pumping Approach

A two-stage or three-stage pumping system ensures efficient gas removal

Initial roughing stage – Removes bulk gases and moisture.

High-vacuum stage – Achieves deep vacuum for thorough drying.

Holding stage – Maintains vacuum to ensure no reabsorption of moisture.

3. Proper System Sizing

An undersized pump leads to prolonged processing times, while an oversized pump increases energy costs. Factors to consider:

Transformer tank volume.



Outgassing rate of insulation materials.



Required evacuation time.

4. Leak Detection and Prevention

Even minor leaks can compromise vacuum levels. Regular leak checks using helium mass spectrometers or pressure rise tests ensure system integrity.

5. Temperature Control

Heating the transformer core and windings during vacuum drying accelerates moisture removal. Optimal temperature ranges (typically 80-110°C) must be maintained to avoid insulation damage.

6. Real-Time Monitoring & Automation

Advanced vacuum systems incorporate sensors and PLC controls to:

Monitor vacuum levels in real time.

Adjust pumping speed dynamically.

Automatically switch between pumping stages.

This minimizes human error and ensures consistent results.

Benefits of Optimization

Faster Processing – Reduced evacuation times increase production throughput.

Energy Efficiency – Properly sized and controlled systems lower power consumption.

Higher Reliability – Ensures transformers meet stringent industry standards (IEC, IEEE).

Lower Maintenance Costs – Prevents pump overload and extends equipment life.

Conclusion

Optimizing vacuum pumping systems for high-capacity power transformers is essential for ensuring quality, efficiency, and long-term reliability. By selecting the right pumps, implementing multi-stage evacuation, maintaining leak-free systems, and leveraging automation, manufacturers can achieve superior drying performance. As transformer demands grow, continuous improvements in vacuum technology will play a pivotal role in advancing power grid resilience.
