As technology of medical care has risen, the right display technology must be chosen such that the patient is diagnosed and treated appropriately. The displays must be able to deliver high resolution, reliability, and transparency on the basis of various medical applications. OLED (Organic Light Emitting Diode) and LCD (Liquid Crystal Display) are the two common display technologies used in medical devices and each has a disadvantage and advantage. OLED and LCD differences are explained in this guide to enable medical professionals and manufacturers to make proper decisions on what technology will be best suited for their needs.
Understanding OLED and LCD Technologies
LCD (Liquid Crystal Display)
LCD screens employ the use of backlight to energize liquid crystals which either block or allow light through them in such a way that various colors and levels of brightness are generated. LCD technology has been tried, is very economical, and durable and is commonly used in healthcare equipment.
OLED (Organic Light Emitting Diode)
OLED screens use organic material that is stimulated by an electric current to emit light, however. Organic material couples in the OLED screen emit light without having a backlight. Greater contrast ratios with darker blacks are developed and color rendering is enhanced for improved visualization choice for medical imaging with the self-emissive technology.
Key Considerations for Medical Displays
Medical monitors need to be operational in order to offer accuracy in the clinical environment. The following are particularly significant for medical monitors:
1. Resolution
Resolution is vitally important in medical imaging due to the fact that it enables doctors to visualize very fine details, which is essential for correct diagnosis. Monitors in the clinical environment are usually high-definition (HD), 4K, or even 12-megapixel resolution.
2. Luminance (Brightness)
Uniform luminance is also required to see under dynamic lighting. Medical displays in certain situations incorporate technology that is embedded within and uniform in luminance for the duration it operates so that precious information is not wasted.
3. Contrast
High contrast levels are required in order to represent small medical image changes. OLED is more capable of doing this with real blacks, which produce a higher-resolution image, especially in dark screen regions.
4. Calibration
Proper calibration to ensure uniform luminance and grayscale rendering is necessary to provide effective medical imaging. Calibration software on the majority of medical displays is typically industry-standard compliant, e.g., DICOM (Digital Imaging and Communications in Medicine).
5. Durability and Longevity
Medical monitors must endure repeated use, potential physical abuse, and occasional cleaning. Performance and image quality must endure over an extended period because durability is needed.
6. View Angle
There must be a broad field of view in operating rooms, for example, where multiple experts would need to see the screen together without sacrificing image quality.
OLED vs LCD: A Detailed Comparison
Feature | OLED | LCD |
Picture Quality | Excellent color accuracy, deep blacks, superior contrast | Good quality, but cannot achieve true blacks |
Energy Efficiency | More power-efficient with darker images | Consistent power consumption regardless of content |
Durability | Flexible but more prone to impact damage | Robust, less vulnerable to impact |
Lifespan | Shorter lifespan if not properly maintained | Longer lifespan but quality degrades over time |
Cost | Expensive to produce | More affordable |
Viewing Angles | Excellent color consistency at all angles | Colors and contrast may shift off-angle |
Black Levels | True blacks | Blacks are not as deep as OLED |
Contrast Ratio | Very high | Lower than OLED |
Brightness | Lower, but still sufficient for many applications | Higher, suitable for brightly lit environments |
Uses of OLED Monitors in Medical Devices
1. Diagnostic Radiology
For diagnostic imaging, where image quality is critical, OLED monitors offer better color and contrast. This allows radiologists to more easily identify even subtle abnormalities in diagnostic images, and to make better diagnoses.
2. Surgical Displays
Directional accuracy is the foremost concern for real-time surgery applications. OLEDs are the best option as they have high-speed refresh rates and large viewing angles and hence operation theatres can view undistorted high-fidelity images from any location on the monitor.
3. Clinical Review
For everyday clinical examination, OLED or LCD monitors may be used, although LCDs would preferably be used as they are inexpensive and durable to withstand wear and tear, especially for uses that do not require the dominance of OLEDs.
4. Telemedicine
Telemedicine requires high-fidelity image reproduction and adequate transmission reliability. While OLEDs have a higher quality image, LCDs might be more viable because they are less costly and less light-sensitive and are therefore a better choice for widespread implementation of telemedicine.
Regulatory Standards
Medical displays need to meet strict regulatory guidelines regarding safety, accuracy, and reliability. Among the most applicable of these are:
·DICOM (Digital Imaging and Communications in Medicine): Ensures consistency and reliability of image storage and transmission in imaging devices employed in medical fields.
·IEC and UL 60601-1: Ensures standards of performance and safety for medical electrical devices.
·FDA 510(k): Ensures that the manufacturers demonstrate the efficacy and safety of their device before allowing them to market their device in the U.S.
Compliance of both medical experts and producers to such standards is beneficial in an attempt to make medical display safety and reliability easier.
Key Issues to Consider when Selecting a Medical Display
1. Image Quality
For the application where maximum color accuracy and contrast are required, OLED might be the best choice. Where even brightness and longevity are needed, LCD might be the best choice.
2. Budget
LCD screens are more affordable, so more suitable to utilize in the event of cost implication. OLED screens, even though costly to acquire, pay off more than LCDs, and perhaps the expense will prove to be worthwhile in some top-end applications.
3. Environmental Conditions
Consider where the screen is going to be located. LCDs are preferable to utilize in light situations, whereas OLEDs are preferable to utilize in dark situations.
4. Resistance and Toughness
In conditions of great wear and tear, or susceptibility to physical damage, LCD monitors shall be providing inferior damage resistance, but superior durability, and so shall emerge the better pick in this situation again.
Displaysell: Your Display Solutions Partner

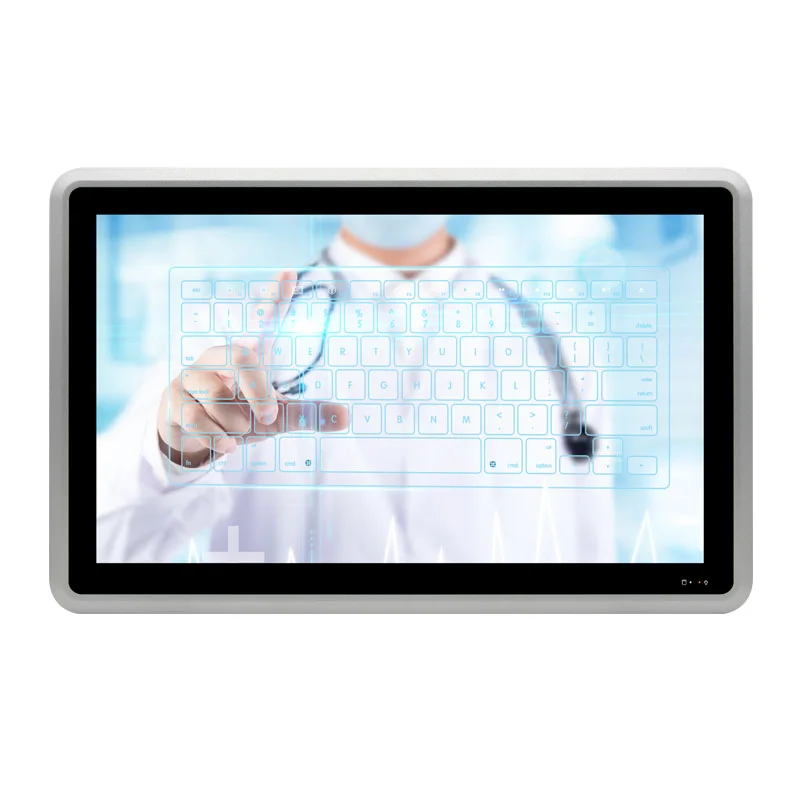

Displaysell offers a series of medical display solutions for the medical sector with varied needs. From LCD to OLED technology, Displaysell offers high-quality, long-lasting diagnostic imaging, surgical displays, clinical reports, and telemedicine. You own the better display for your medical equipment with Displaysell products like the 15.6-inch Industrial Touch Panel.
The Future of Medical Displays
The medical display market is to experience unprecedented growth with OLED technology continuing to develop. As OLED stabilizes and becomes more cost-effective, it will experience increasing demand, and so will its application in the medical sector. Additionally, multi-modal displays that are capable of operating with color and grayscale images are increasingly being used, and that too is enhancing the flexibility of medical displays.
Conclusion
Considering the OLED or LCD monitor option for use in medical conditions, the practical use requirements, cost, and circumstance should be considered. OLED has a greater contrast ratio and picture and is suited for severe diagnosis and operating conditions, while LCD is stronger and less expensive to install for routine clinical use. By knowing the strengths and limitations of every technology, healthcare professionals and producers can make informed decisions that consequently improve patient care and organizational effectiveness.
For top-notch and innovative display technology solutions, go to Displaysell’s gallery of OLED and LCD medical solutions. Committed to high-performance, reliable, and robust capabilities, Displaysell still has top-ranked display technology to tap for medical applications.
